Triple Layer 0.18 ReRoof Solution
Triple Layer 0.18 ReRoof Solution
Superior Roof Insulation – 0.18 U-Value
Ecohome Insulation’s Exclusive Triple Layer 0.18 ReRoof Solution. Achieve building regulations of 0.18 U-value in 75mm Rafters or deeper, with no Kingspan or Celotex!
This Multifoil only system is proven to insulate a roof in less cost, space and installation time than any other method on the market.
Our system includes a double layer of YBS SuperQuilt, and a single layer of YBS BreatherQuilt. These materials also have a built-in breather membrane and vapour control layer, reducing extra materials required.
See our useful how-to video, displaying fixing instructions and materials required.
What is include in the 12m² Kit?
- YBS SuperQuilt 1.2m x 10m (Double Layer)
- YBS BreatherQuilt 1.2m x 10m
- Adequate Thermaseal Foil Joining Tape
- Heavy Duty Staple Gun & 5,000 Staples (24m² Kit or more)
- Free Delivery to any UK Mainland Address
We would also recommend to purchase a Multifoil Fitting Kit when insulating with our Triple Layer 0.18 ReRoof Solution.
All ordered online placed before 2pm are delivered carriage the next working day (UK Mainland only)
Bespoke U-value calculations available on our partner’s website Multifoil Insulation. See Link – Click Here
Prefer to order by phone? Speak to one our helpful team on 0114 323 0029.
Require a kit larger than 72m²? Please call the number above. Alternatively us our enquiry page or Call Me Back for a call within 1 hour.
Spend £500 + VAT and Choose a FREE GIFT at the checkout!
Free Gifts Include: Thermaseal Foil Joining Tape, Heavy Duty Staple Gun Kit, Multifoil Insulation Scissors or Thermaseal Double Sided Tape.
How To Insulate A Roof With The Triple Layer Multifoil System
Triple Layer 0.18 Re-Roof System - By Ecohome Insulation
How to Insulate Your Roof Without Any Kingspan or Celotex
Install first run of BreatherQuilt
Firstly, install YBS BreatherQuilt on the external of the pitched roof. Ensure the reflective foil is facing internally with the Breather membrane facing outwards. Starting at the bottom of the rafters, staple BreatherQuilt to the first rafter using 14mm staples (recommended 300mm intervals). Roll BreatherQuilt horizontally across each rafter, stapling continuously. BreatherQuilt should sag between the rafters as opposed to being pulled taught. Ensure that once the tile battens are installed, there is a clear 10mm gap between the top layer of BreatherQuilt and the tile battens.
Install next run(s) of BreatherQuilt
Next, install a further layer of BreatherQuilt, overlapping the product by 100mm and seal using the built in double sided tape. Staple as previously and ensure the tape is secured and sealed. This is to be repeated dependent on how many runs are required for the roof. Additional rolls on the verticals should be butt jointed on the rafters. Ensure the butt jointed rolls are stapled as previous and taped using waterproof tape.
Install Tile Battens & Tiles
At the eaves, BreatherQuilt should extend onto a suitable eaves carrier. This works in the same method as standard breather membranes. Proceed next by installing horizontal tile battens, on the top of the BreatherQuilt. Finally, finish by install tiles or slates.

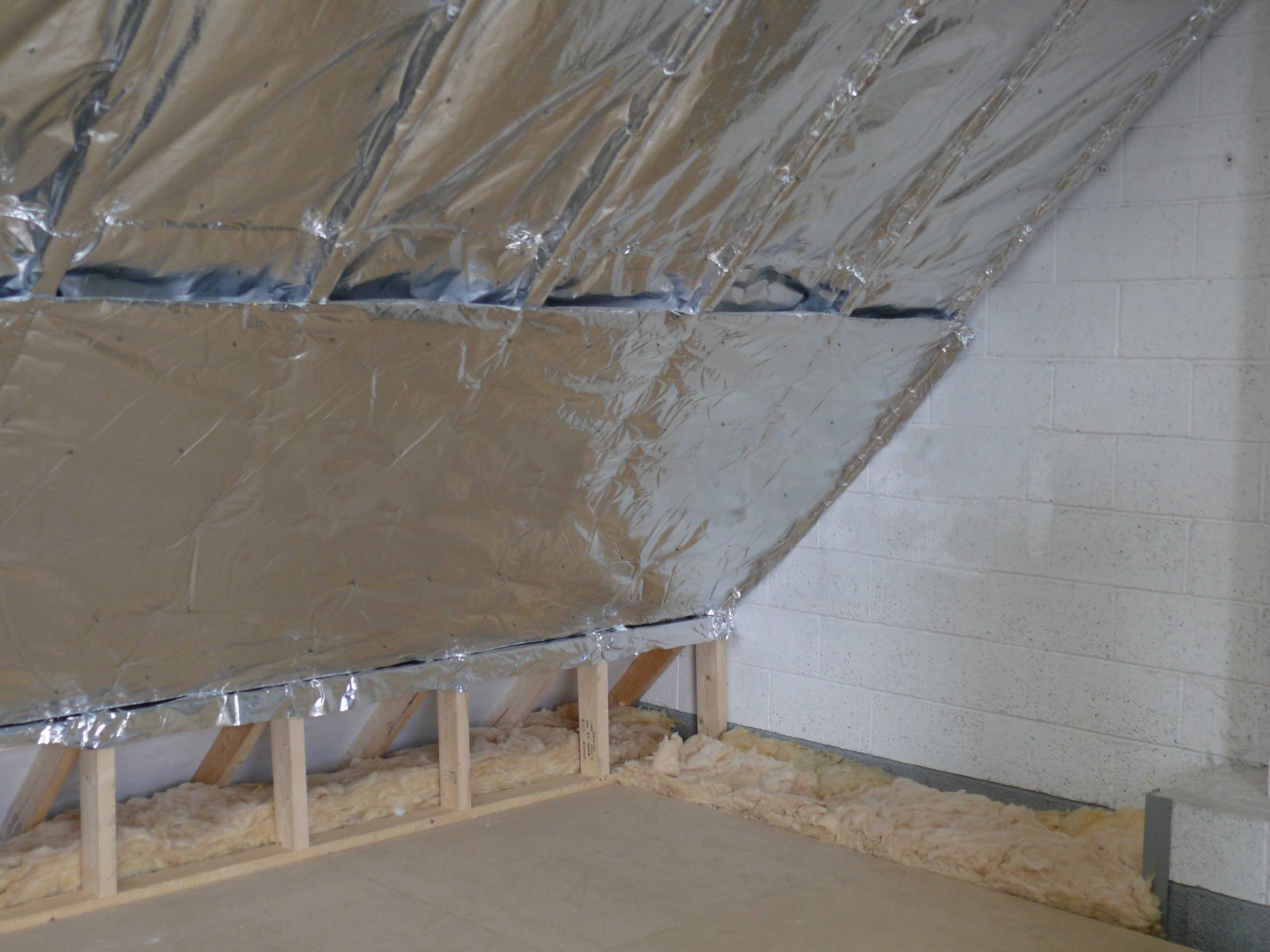

Install 2 Layers of SuperQuilt Under Rafter
Both layers of SuperQuilt can now be installed from the internal (underside) of the rafters. The first layer of SuperQuilt is to be recessed in-between the rafters, the 2nd layer of SuperQuilt is to be pulled taught as a flat continuous layer, ensuring that there is a clear cavity between both layers of SuperQuilt and BreatherQuilt.
Recess 1st Layer of SuperQuilt
SuperQuilt is stapled to the underside of the first rafter. SuperQuilt is next recessed into the rafter (25mm), and fixed with staples of with battens. The material is then pulled taught and fixed to the opposite rafter. SuperQuilt is then wrapped around the rafter, ensuring stapling regularly, and the procedure starts again. SuperQuilt is overlapped by 50mm, ensure fully tape and seal using Thermaseal Foil Joining Tape over the laps and around the perimeter.
Install 2nd Layer of SuperQuilt
Once the first layer of SuperQuilt is installed, proceed by installing the second layer. Staple or nail the second layer through the first layer into the rafters behind. Ensure this layer is also pulled taught, there will then be a cavity between the two layers of SuperQuilt. As per the first layer, the second layer is also overlapped by 50mm. Ensure again the product is fully taped and sealed around the perimeter and overlaps using Thermaseal Foil Joining Tape.
Once both layers are installed and taped, you are ready for your secondary batten & plasterboard. Start by installing 25mm x 38mm battens on the insulation. We advise to cross-batten, however vertical battens can be used if preferred. Finish by installing 12.5mm Plasterboard. There is no requirement for a Foiled-back plasterboard or VCL. SuperQuilt works as a high performance Vapour Control Layer when taped and sealed using the ThermaSeal Foil Tape.
- 3 Layers of High Performance Multifoil Insulation Materials
- All products are fully LABC & BDA Certified
- Can be insulated in 75mm Rafters
- 2-in-1 Breathable Membrane
- No risk of condensation
- No requirement for Rigid PIR Boards
- Thin, Flexible and Easy to use products
