EcoPro Hot Tub Insulation Kit
EcoPro Hot Tub Insulation Kit
Many Hot Tubs arrive completely uninsulated, which makes them extremely energy inefficient. This is why Ecohome Insulation have created an EcoPro Hot Tub Insulation Kit, to address the inefficiency. To put it simply, if your hot tub is uninsulated you are paying more than someone who has an insulated hot tub, to obtain the same desired temperature.
So, how does the Hot Tub Insulation Kit work?
By Insulating your Hot Tub – you are making it more energy efficient. When the kit has been installed, it will reflect heat back in to the hot tub and reflect any cold away. This means less energy will be required to maintain the desired temperature.
What’s Included in the EcoPro Hot Tub Insulation Kit?
- The EcoPro Multifoil Insulation – 1.2 x 10m
This is a high performing multifoil insulation blanket and is made up of 6 Highly reflective layers. The material compresses to under 10mm in thickness, so you can easily install this behind the panels.
- True Aluminium Thermaseal Foil Joining Tape 75mm x 50m
You use the True Aluminium Foil Joining Tape (included in the kit) to Tape and Seal. Once the multifoil insulation has been taped and sealed you prevent cold air entering and warm air from escaping.
- 10″ Heavy Duty Scissors
- Free Next Working Day Delivery (When ordered before 2pm)
To find our How to Insulate your Hot Tub press HERE.
Any Questions, just fill our our Enquiry Form Here.
Or alternatively, you can Request a Call Me Back Here if you have any queries, or if you would like to place an order by phone.
If you work in the hot tub trade – either as a distributor or manufacturer just get in touch as we can offer trade discounts on this product / any other product within our range – on bulk purchases.
Before purchasing the 12m2 kit just make sure:
Your Hot Tub has a height no greater than than 1.2m (Hot Tub heights range from between 29 and 35 inches, so this is suitable for most).
Also make sure, the circumference of your hot tub is no greater than 10m. If it is, you will require the 24m2 Kit.
Any queries regarding this, please do not hesitate to contact us.
How To Insulate Your Hot Tub
Working Out How Much Insulation You Will Need
Firstly this may be easier with 2 people, measuring the edges with someone to hold the tape in place helps. If your Hot Tub is round, simply measure the circumference. TOP TIP: If you have a sewing/fabric tape measure, this will make this step easier for those who have a round Hot Tub. If you have a square hot tub, you can measure one side and multiply this by 4. If you have a rectangular Hot Tub, measure the shorter side and multiply by 2 then measure the longer side and multiply by 2. Add these 2 figures together. Note your measurements down, in preparation for cutting shortly.
Measure the Height of your Hot Tub
Checking the height of your hot tub at this point is important, it shouldn't exceed 1.2m - but if it does, Contact Us. The height of even the tallest hot tubs tends to be no higher than 100cm (1m). It is likely that your tub will range from between 70cm - 100cm.
Cutting the Multifoil Insulation to the correct length

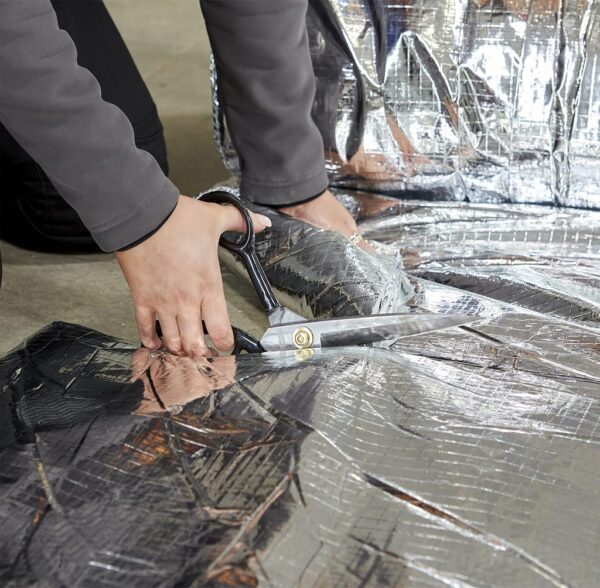

Looking at the measurements taken in Step 1, relating to the perimeter of your hot tub, Add 70mm to this figure. Roll the insulation out and then prepare to cut. TOP TIP: Pull the Insulation taut, prior to cutting with the Multifoil Insulation Scissors. This will compress the layers and make it easier to cut through. If preferred, you can use a cutting knife, just ensure that the insulation is taut and therefore compressed beforehand.
Removing the Side Panels of the Hot Tub
This process may vary depending on the type of Hot Tub you have, but you are likely to need a screwdriver for this stage. Your Hot Tub is likely to have screws on / around each of the corners on the panels. If you can remove the side panels, without removing the corner panels, this is ideal. TOP TIP: Do not remove the corner panels unless you have to, to release the main side panels.
Start Installing the MultiFoil

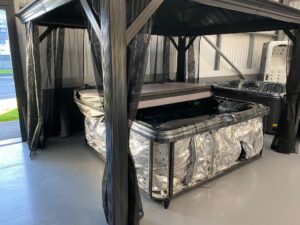

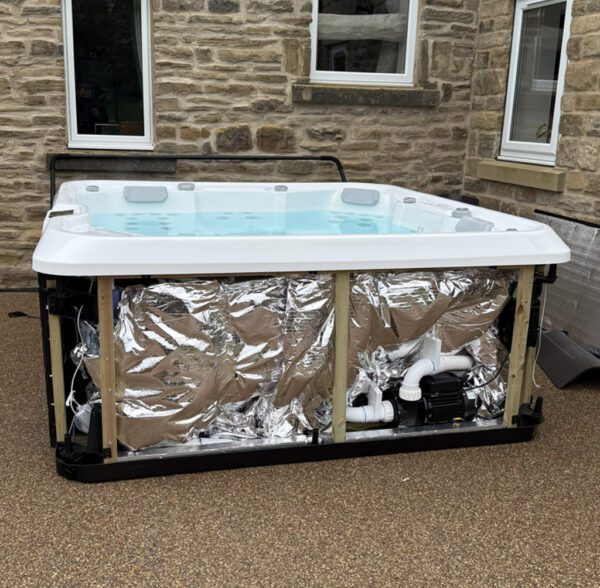

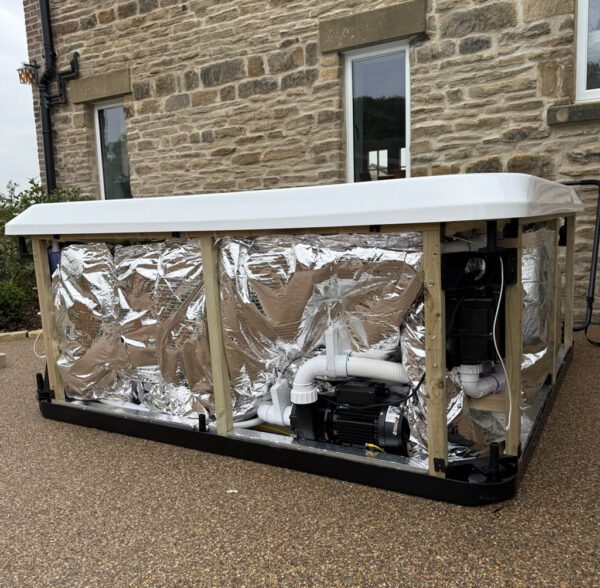

Now you can start installing the Multifoil Insulation. Begin by tucking the multifoil behind the corner panel / strip, this will help to secure the insulation in place whilst you get started. As the image shows, tuck the material in at the top and at the bottom edges - by tucking here, you are minimising the heat escaping and cold air entering. Keep repeating this around the perimeter of the hot tub.
Cut The Multifoil Where Necessary
For most of our applications, we advise to keep the multifoil in a continuous insulation layer - But we understand for this specific application there are certain parts such as the control panel and pipe work, that you may need to leave accessible and therefore exposed. Simply, cut around these areas with the scissors provided. Be careful not to cut anything other than the Multifoil Insulation.
Once you have insulated around the whole perimeter of the hot tub (excluding the areas cut) then you should have a little excess insulation, which you can use to overlap slightly - This is in preparation for taping.
Taping Around Joints & Edges
Using the Thermaseal Foil Joining Tape, begin by taping where you have just overlapped the insulation. You can then tape and seal around any edges where air may pass in or out. The aim is to keep the multifoil in a continuous layer as much as possible, so taping over any area where warm air may escape and cold air may enter.
Reassemble Your Hot Tub, Relax and Enjoy
Once all taping has been completed, reattach your side panels ensuring they are securely screwed on as before. Then you can enjoy your newly Insulated Hot Tub.... Relax in it for longer, whilst safe in the knowledge you are using a lot less energy than you had used previously.
How does the Hot Tub Insulation Kit work?
When the kit has been installed, it will reflect heat back into the hot tub and reflect any cold away. This means less energy will be required to maintain the desired temperature.
Will the water from the hot tub damage the insulation?
No, as long as it’s correctly sealed and the insulation isn’t exposed.
Is the insulation easy to cut?
Yes, we include some Multifoil Insulation Scissors in this kit, and they will easily cut through the insulation.
How much insulation do I need for my hot tub?
Your Hot Tub has a height no greater than 1.2m which is just over 47 inches (Hot Tub heights range from between 29 and 35 inches, so this is suitable for most). Make sure the circumference is no longer than 10m otherwise you will require the 24m2 kit.
|EcoKit Roll Length||10m|
|EcoKit Roll Width||1.2m|
|EcoKit Roll Thickness||15mm (5mm Compressed)|
|EcoKit Roll Layers||6|
|SuperKit Roll Length||10m|
|SuperKit Roll Width||1.2m|
|SuperKit Roll Thickness||40mm (10mm Compressed)|
|SuperKit Roll Layers||19|
- Lightweight and flexible Multifoil
- Takes up very little room
- No harmful floating materials compared to traditional insulation
- Equivalent to around 100mm of Glasswool / 50mm of Rigid Board Insulation
- UK Manufactured
