High-Performance Insulation Made Easy
EcoQuilt Expert is a Highly Reflective 6 Layer Multifoil Insulation Blanket. Designed to insulate Roofs, Walls, Floors and Conservatories. It is also used in Garden Buildings & Many More applications.
At 15mm thick in its open state this will compress down to just 6mm. Is equivalent to around 100mm of Glasswool or 50mm of Rigid Board such as Kingspan and Celotex. Making EcoQuilt one of the highest performing Insulation materials on the Market under 10mm in thickness!
Manufactured in the UK, EcoQuilt contains 6 layers of high performing layers. Containing no harmful materials which does not require any PPE to install.
At under £7 a Square Metre EcoQuilt Expert is our most popular insulation. It is also the highest performing material when measuring Cost vs Performance!
EcoQuilt Expert is supplied in 1.5m x 10m rolls (15 Square Metres) and 1.2m x 10m rolls (12 Square Metres). Overlaps, Cuttings and the perimeter are to be Taped and Sealed using ThermaSeal True Aluminium Foil Tape. This will ensure that the insulation will act as a high performing vapour control layer, eliminating the risk of condensation from forming.
Ecohome Insulation’s EcoQuilt Expert is also available as a Trade Pallet Deal. The most cost effective way to purchase EcoQuilt Expert, popular for larger projects or Tradesmen.
To view our informative Data and Installation Sheet – Click Here.
EcoQuilt Expert is also available with next working day delivery. Delivered Carriage Free if over £100 + VAT.
For any further information or to order by phone you can request a ‘Call Me Back’ Here and one of our dedicated team members will call you within 1 hour!
Watch our helpful How-To Videos by visitng our Youtube Channel Here!
Spend £500 + VAT and Choose a FREE GIFT at the checkout!
Free Gifts Include: Thermaseal Foil Joining Tape, Heavy Duty Staple Gun Kit, Multifoil Insulation Scissors or Thermaseal Double Sided Tape.
EcoQuilt Expert is our most popular High Performance Multifoil Insulation solution for both D.I.Y and the professional building trade looking for maximum performance at less cost and less Labour time.
EcoQuilt Expert is the Highest Performance Multifoil Insulation blanket in Europe when measuring Performance against Cost. If your project is going through Building Control and have to achieve a certain U-Value then we recommend using our SuperQuilt Insulation. This product is fully LABC and BBA Certified.
We supply EcoQuilt Expert at less than £6 a square metre. We guarantee you will not buy a higher quality Multifoil with an R value of more than 2.0 for less. Energy payback time is very fast – especially in the Roofs, Walls, Floors and conservatories of older properties where most UK homes are still drastically under insulated!
Watch our online How-To Videos to see how easy EcoQuilt can be installed in a variety of different applications. EcoQuilt Expert is clean, easy to fit and safe unlike traditional nasty fibre insulation products. In a loft EcoQuilt is either installed onto the rafter level (above head) or onto the Floor Joists (it is important to remove any existing fibrous material before installing EcoQuilt Expert onto loft floor).
EcoQuilt Expert works as a complete Insulation blanket preventing warm air from leaving your home while effectively reflecting the heat back – Keeping you warmer in winter and cooler in summer. EcoQuilt Expert is also designed for Garden Buildings, Conservatories, Cellars, Garage Conversions Motor Homes as well as hundreds of other projects where a total thermal insulation break is required.
EcoQuilt Expert comes on easy to handle 1.2m x 10m (12m2) Rolls OR 1.5m x 10m (15m2) rolls, making fitting EcoQuilt Expert extremely easy.
We recommend one roll of ThermaSeal True Aluminium Foil Joining tape (75mm x 50m) for every two 15m2 rolls of EcoQuilt Expert.
When you spend over £500 + Vat on all orders we even supply you with a Free Staple Gun & 5,000 14mm Staples (first order only).
How To Insulate Your Roof, Walls & Floor With EcoQuilt Expert
How To Insulate Your Garden Building Using The EcoPro Shed Insulation Kit
How To Insulate Your Loft Floor Using EcoQuilt Expert
How To Insulate Suspended, Floating and Crawl Space Floors Using EcoQuilt Expert
How To Insulate Your Walls With EcoQuilt Expert
Install Timber Battens
Start by installing 25mm battens directly onto the solid wall, horizontally or vertically at 400 to 600mm intervals.
Cut to desired length
Roll out EcoQuilt to the desired length, before cutting with a Cutting Knife or Multifoil Scissors, both available in our MultiFoil Fitting Kit. Check out this tutorial on how to professionally cut your insulation.
Stapling your EcoQuilt
Begin at one end of the wall, hold up EcoQuilt to the right position and staple into place at 300mm intervals. We recommend using a Heavy-Duty Staple gun and 14mm staples. *Make sure EcoQuilt is pulled taut to allow product to expand & reflect into cavities. Repeat stapling across the wall and around perimeter. When installing the next run of EcoQuilt, we recommend overlapping by a minimum of 50mm.
Using Thermaseal Foil Joining Tape to seal
Once EcoQuilt is applied, begin to tape and seal all overlaps using ThermaSeal Foil Joining Tape around the perimeter and the overlaps to prevent condensation and to create an airtight barrier. We recommend 1 roll of Thermaseal Foil Joining Tape for 30m2 of EcoQuilt.
Install Counter Battens
Now it’s time to install your 25mm counter batten. Again, horizontally or vertically at 400 to 600mm intervals. We recommend these counter battens to be fixed to the initial battens. We also recommend creating a frame around any windows and around the perimeter.
Finally, once battens are fixed, appropriate plasterboard can be installed. Simply screw into your battens. This application would not require the use of a Foiled-back plasterboard as EcoQuilt Expert works as a high performing Vapour Control Layer when fully sealed with Thermaseal Foil Joining Tape. Optional insulated platerboards could be used for extra thermal benefits, if desired.
How To Install EcoQuilt Expert on Roofs and Walls
Watch our How-To Video to see how easy it is to install EcoQuilt Expert in various applications.
Measure the Area and Cut the EcoQuilt to Size
Measure the area of either the wall / roof section depending on where you would like to insulate first and cut. You can cut using either our Cutting Knife or Multifoil Scissors. Both of which come part of the Mulfifoil Fitting Kit that we supply.

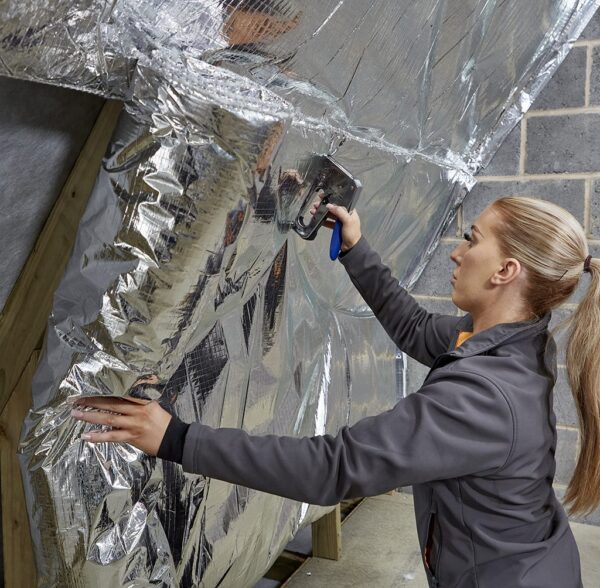

Staple EcoQuilt to the Timber
Proceed by stapling the Multifoil Insulation directly to the timber (whether that be the Rafters, Studs or Battens). This is the best way to enable the EcoQuilt to perform, as it provides a air cavity behind the insulation. When stapling, leave 300mm intervals.
Proceed until Full Coverage
Install the Second Strip of EcoQuilt. IMPORTANT: overlap the EcoQuilt by 50mm, on both the horizontal and vertical joints.
Tape - Using ThermaSeal Foil Joining Tape
Use the ThermaSeal Foil Joining Tape - to tape and seal all the joints and edges. You will need to ensure that the EcoQuilt is fully taped and sealed around the perimeter, as this creates the vapour control barrier.
Counter Batten and Plasterboard
Once the EcoQuilt Layer has been installed - install a secondary set of battens over the top of the insulation. We advise using between 400mm and 600mm centre battens. You can then proceed with your internal finish, over the battens.
How To Insulate a Floor using EcoQuilt Expert or YBS SuperQuilt
Installing over existing joists
Start by removing the existing floorboards to expose all joists. We then recommend running the multifoil perpendicular to joists and cutting at each end, allowing enough material to recess the quilt into the joists.
To save on headheight, you can now recess the multifoil into the joists. We recommend using a 50mm batten as a guide and stapling along the top and sides of each batten. If preferred you can use our Multifoil Saddle Clips.
Taping and Sealing with ThermaSeal Foil Tape
Next tape and seal around the perimeter with ThermaSeal Foil Joining Tape. This will prevent drafts from rising through the flooring. We recommend overlapping each layer of Multifoil by 50mm and leaving the overlaps untaped, to allow the timbers to breathe.
You can then proceed to install the floorboards back over the joists and insulation. This will then have created an air cavity on either side of the insulation.
How To Insulate Your Timber Building Using an EcoPro Shed Insulation Kit
Staple the EcoQuilt Expert under the roof rafters
Start by stapling EcoQuilt Expert to the roof rafters using the Heavy Duty Staple Gun Kit. Ensure that the material is pulled taut across onto the next rafter. Then, Staple down the second rafter at a maximum of 2 inches apart.
Secure & Cut off any excess
Once you have secured the first section, cut any excess material off with the sharp blade provided in the EcoPro Shed Insulation Kit.
Repeat the process
Install the next section in the exact same way, stapling to the rafters and cutting off any excess. Remember to ensure a 50mm overlap of material.
Seal with ThermaSeal Foil Joining Tape
Once you’ve stapled your EcoQuilt, it’s now time to seal all of the joints and edges with ThermaSeal Foil Joining Tape. This is what creates the Vapour Control barrier.
Fixing your roof counter battens
Now you can fix the 19mm battens to secure your EcoQuilt, using screws with a minimum length of 35mm. Fix the remaining battens in the exact same way. Now, you are ready to install the surface finish of your choice.
It’s time to insulate the walls
For buildings with existing studwork, hold your insulation into place and simply recess the EcoQuilt halfway back by stapling it onto the side of the stud. Ensure a 19mm air gap either side of the insulation. Then continue by pulling the material taut before securing onto the next timber stud. Ensure EcoQuilt is stapled at minimum intervals of 300mm, using the 14mm staples provided.
Attaching battens (if needed)
If your space does not have timber uprights, you can fit 19mm battens onto the walls using screws.
Seal the with ThermaSeal Foil Joining Tape
Now that all of your EcoQuilt is stapled into position, it’s time to seal all overlapping joints and around the perimeter with ThermaSeal Foil Joining Tape to ensure an airtight seal.
Fixing your wall Counter battens
As you did with the roof, fix the 19mm battens to secure your EcoQuilt using screws with a minimum length of 35mm. Fix the battens, in the same place as the existing wall studs. Repeat the exact same process. Now you’re ready to install the final surface finish of your choice and decorate!
Enjoy your fully insulated Timber building!
How to Insulate Your Loft Floor Without Using Fibreglass
Remove Existing Minerlal Wool Insulation
Start by removing the existing loft insulation. Ensure a mask and protective clothing is used to avoid irritation to the skin.
Installing first run of EcoQuilt
Measure out the length of material required, then roll our EcoQuilt Expert over the joists. EcoQuilt can be simply be cut using scissors or a cutting knife - Both available in our Multifoil Fitting Kit. Ensure when the second run of EcoQuilt is installed the layers are overlapped by 50mm.
Recess and Staple EcoQuilt
Staple EcoQuilt on both the top of the joists, and also on the sides when recessing. We recommend the use of a 25mm batten to use as a template, this will ensure accurate and correct air gaps throughout the floor area. The benefit of recessing is to create a cavity without the use of a batten. When a cavity is formed, optimum performance is gained from the insulation as this will reflect properly.
Taping & Sealing
Ensure all overlaps are fully taped and sealed using Thermaseal Foil Tape (Provided in the kit) Ensure the brick walls are dust and debris free. Fully tape and seal around the perimeter with Thermaseal Tape. This will ensure EcoQuilt works as an Insulating Vapour Control Layer. It will avoid any air leakages, and keep the heat on the internal.
Install Second Layer
You then have the option to install a 2nd layer of EcoQuilt taut over the joists, Using an additional layer will maximise the heat retention. For further installation benefits, use a 25mm batten over the joists.
Installing Loft Boards
Once 1 Layer of EcoQuilt is installed and taped using ThermaSeal Foil Tape, you are now ready for the installation of loft boards. This can be screwed directly into the joists through the insulation.
|Thickness||15mm (5mm Compressed)|
|Floor R-value||up to 5.56m²K/W|
|Water Vapour Resistance||600MNs/g|
- 15mm, 6 Layer Multifoil Insulation
- Cheaper alternative to SuperQuilt
- Compresses down to approx 5mm
- Flexible, Thin and simple to install
- Suitable for all Applications
- High Performing Vapour Control Layer
- R-Value of up to 2.27 m² K/W
- UK Manufactured – Ecohome Insulation
